Dryers are the ideal solution for drying of various kinds of grains, inter alia: wheat, rye, oats, barley, malt, rape, grochu, maize, sunflower, soybean, rice, cacao bean, peanuts, grass and various types of loose granules and biomass.

Rotary seed treatment machines manufactured by AGRALEX is intended for the treatment of the seed of various plants the seed cultivation mortar powder, disperse and liquid, wherein it is possible to use several types of seed treatment including biological, by using several independent systems operating liquid dispensing.

Seed treatment machines ROTALEX RA50 The new generation of seed treaters, thanks to modern design, versatility, functional, fully automatic control and supervision, the use of modern manufacturing technology and a remote control system and service on-line, provides:

- Dressing different seeds: small (eg. Canola, cereals) and large (eg. Beans, lupins);
- Dosing mortar with high precision; - The simultaneous use of several mortars, even those that can not be mixed together;
- High performance dressing;
- A high degree of coverage of the seed;
- High uniformity of application of mortar on the seeds;
- High reliability;
- Simple, uncomplicated service.

- Productivity of seed pickling from 10 to 25 t/h with the possibilty of adapting for productivity of 50 t/h,

- innovative system of seed proportioning by weight equipped with two belt conveyors, precise dosing of liquids,

- possibilities of applying of different independent application system of seeds pickles and various additives applied on seeds,

- automatic electronic system,

Is the ideal solution for seed treatment/pickling in a batch system, its advantage is very easy operation and maintenance. The machine is equipped with a rotary atomizer, which evenly sprays by pickling liquid grain located in the seed treatment/pickling chamber.

Dust extraction unit, in which is also equipped, purifies the seeds of light impurities and dust before spraying cycle. This ensures the high quality of the pickling and increases safety at work.

Its a small performance, to 1 t/h, is used in small and medium-sized farms.

The principle of operation:

The seeds contained in the pickling chamber are fitted in the inertial motion causing a very intense their mixing. Then in the chamber is released from the seeds dust which is sucked with the aid of suction nozzle and transported along with the air to the dust extraction device. The task of dust extraction device is also pulling fumes out of the bag during bagging of pickled seeds. Pickling liquid automatically flows from the reservoir to the rotary atomiser located in the lid of the chamber. In the lower part of the mixing chamber is a gate valve used to emptying of the chamber from the pickled seeds, this is done after pulling the rod of gate valve whose handle is located just above the bagging machine.

Destiny:

For seed treatment/pickling of cereals and legumes by all available seed pickles liquid.

Is the ideal solution to round-the-clock work system. High and adjustable machine productivity allows for the independent work as well as to work in technological lines.

Dust extraction unit which is equipped with a machine sucks off light impurities and dust before spraying cycle.Seed treatment/pickling system is based on the work of atomizer which rotating at high speed sprays seed pickle creating a haze and this in turn provides uniform coverage of all seeds with seed pickle.
Modern design affects the quality of the seed treatment/pickling and operational reliability.

The principle of operation:

The seeds located in the charging hopper after opening the working gap falling down rotate the drum of the dispensing mechanism. On the axis of the drum is mounted wheel dosing seed pickle the blades are submerged in seed pickle located in the trough.
The blades turning derive seed pickle and pour it into the pan, hence, in turn, seed pickle is fed by supply conduit to the atomizer rotational directional and sprayed on a freely falling seeds in spraying chamber.
Pickled seeds in spraying chamber fall to the screw conveyor where they are thoroughly mixed with seed pickle and transported for double sack-filling machine.Seed pickle located in the tank is pumped by a pump by pressure pipe to the manifold and continue to drip from which the excess is poured by overflow tube to the tank and suitable dosage collected by the metering wheel is addressed to the trough and further into the atomizer.
Excess liquid from the manifold is directed by line back to the tank in order to continuous mixing its contents - it prevents the sedimentation of a suspension.

Destiny:

For seed treatment/pickling of cereals and legumes by all available seed pickles liquid. Seed pickling machine can work independently or in technological lines guaranteeing high quality pickling.

Is the ideal solution to round-the-clock work system, adapted for use in automated lines.
Modern design provides high quality seed treatment/pickling and reliability of operation.
Is equipped with a dust extraction device which has the task of dust extraction of seeds from the dust before spraying cycle and create a partial vacuum inside seed pickling machine to prevent the escape of dust on the outside and vapors of seed pickle.

All parts in contact with the preparation are made of stainless steel. For seed treatment/pickling of cereals and legumes by all available seed pickles liquid.

We offer You seed pickling machines Hanka with a capacity of 10 t/h, 15 t/h, 25t/h.

Amela is a mobile seed pickling machine, mounted on the trailer car so it can be transported to any farm by car.It has easy operation, fast assembly and disassembly. Pickled seeds are packed in small bags, with the help of attachment to Big Bags or directly on the trailer.

This seed pickling machine has an aspiration system dedusting  seeds effectively. Air contaminated by dust from the seeds is carefully filtered in dedusting device.

The principle of operation:

The seeds located in the charging hopper after opening the working gap falling down rotate the drum of the dispensing mechanism. On the axis of the drum is mounted wheel dosing seed pickle the blades are submerged in seed pickle located in the trough.
The blades turning derive seed pickle and pour it into the pan, hence, in turn, seed pickle is fed by supply conduit to the atomizer rotational directional and sprayed on a freely falling seeds in spraying chamber.

Pickled seeds in spraying chamber fall to the screw conveyor where they are thoroughly mixed with seed pickle and transported for double sack-filling machine.Seed pickle located in the tank is pumped by a pump by pressure pipe to the manifold and continue to drip from which the excess is poured by overflow tube to the tank and suitable dosage collected by the metering wheel is addressed to the trough and further into the atomizer.
Excess liquid from the manifold is directed by line back to the tank in order to continuous mixing its contents - it prevents the sedimentation of a suspension.

Destiny:

For seed treatment/pickling of cereals and legumes by all available seed pickles liquid. Seed pickling machine can work independently or in technological lines guaranteeing high quality pickling.

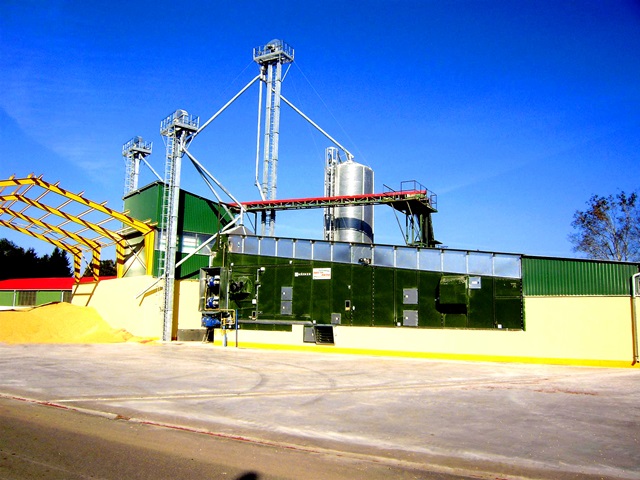

Technical details

Available for productivity from 5 to 53 t/h, what allows you to use facilities offered in agriculture and grain industry.
Designed to work both indoors and outdoors. Then, when the costs of the building are no longer counted, the cost of the entire investment is much smaller.
Are equipped with the system of air recirculation for the total recovery of waste heat from the cooling chamber. The machine has an automatic speed control.
Pollutants does not accumulate in the chambers so that the fire risk is negligible.
Strong, robust design and a modern, computer-based control system allows for full control and programming of the drying process.Each dryer is calculated specifically for a given application.
We offer consulting and installation design for the drying of any products on the basis of our research facilities and practical experience.
